CPSC 330 Python notes

About this document¶

This document contains some Python lecture materials from the 1st offering of CPSC 330. We have decided to stop allocated lecture time to this topic and instead have this as reference material.

import numpy as np
import pandas as pd

Plotting with matplotlib¶

We will use matplotlib as our plotting library.
For those familiar with MATLAB, this package is based on MATLAB plotting.
To use matplotlib, we first import it:

import matplotlib.pyplot as plt

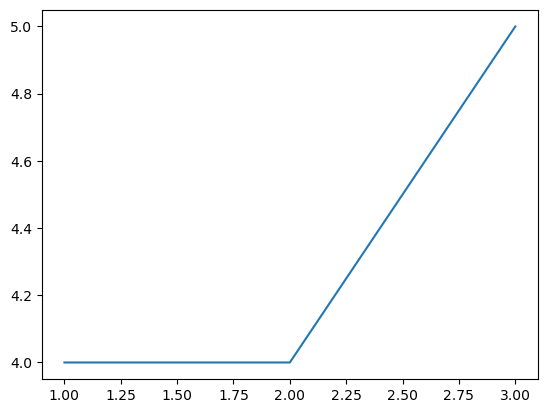

We can now use functions in plt to plot things:

x = [1,2,3]
y = [4,4,5]
plt.plot(x,y)

You will often see me put a semicolon at the end of a line.
This is only relevant to Jupyter; it suppresses the line of “output”..

plt.plot(x,y);

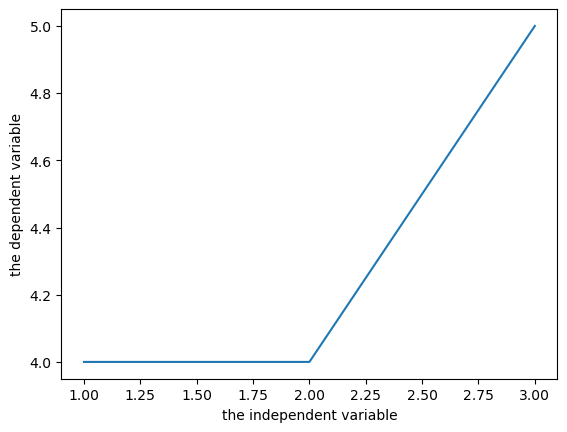

In your homework assignments, at a minimum, you should have axis labels for every figure that you submit.

plt.plot(x,y)
plt.xlabel("the independent variable")
plt.ylabel("the dependent variable");

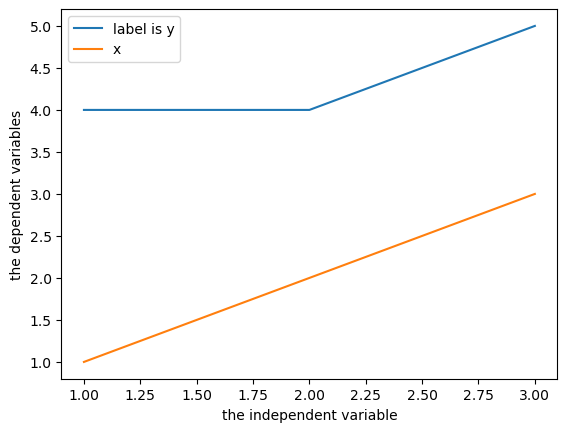

If you are plotting multiple curves, make sure you include a legend!

plt.plot(x,y, label="label is y")
plt.plot(x,x, label="x")
plt.xlabel("the independent variable")
plt.ylabel("the dependent variables")
plt.legend();

You will likely need to visit the matplotlib.pyplot documentation when trying to do other things.
When you save an .ipynb file, the output, including plots, is stored in the file.
- This is a hassle for git.
- But it’s also convenient.
- This is how you will submit plots.

Numpy arrays¶

Basic numpy is covered in the posted videos, you are expected to have a basic knowledge of numpy.

x = np.zeros(4)
x

array([0., 0., 0., 0.])

y = np.ones(4)

x+y

array([1., 1., 1., 1.])

z = np.random.rand(2,3)
z

array([[0.17393037, 0.16991815, 0.18317085],
       [0.56521734, 0.37050406, 0.33888659]])

z[0,1]

0.1699181533555938

Numpy array shapes¶

One of the most confusing things about numpy: what I call a “1-D array” can have 3 possible shapes:

x = np.ones(5)
print(x)
print("size:", x.size)
print("ndim:", x.ndim)
print("shape:",x.shape)

[1. 1. 1. 1. 1.]
size: 5
ndim: 1
shape: (5,)

y = np.ones((1,5))
print(y)
print("size:", y.size)
print("ndim:", y.ndim)
print("shape:",y.shape)

[[1. 1. 1. 1. 1.]]
size: 5
ndim: 2
shape: (1, 5)

z = np.ones((5,1))
print(z)
print("size:", z.size)
print("ndim:", z.ndim)
print("shape:",z.shape)

[[1.]
 [1.]
 [1.]
 [1.]
 [1.]]
size: 5
ndim: 2
shape: (5, 1)

np.array_equal(x,y)

False

np.array_equal(x,z)

False

np.array_equal(y,z)

False

Broadcasting in numpy¶

Arrays with different sizes cannot be directly used in arithmetic operations.
Broadcasting describes how numpy treats arrays with different shapes during arithmetic operations.
The idea is to vectorize operations to avoid loops and speed up the code.

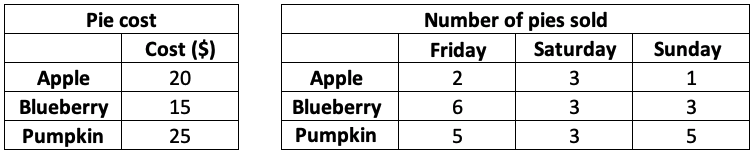

Example: I sell pies on the weekends.
I sell 3 types of pies at different prices, and I sold the following number of each pie last weekend.
I want to know how much money I made per pie type per day.

cost = np.array([20, 15, 25])
print("Pie cost:")
print(cost.reshape(3,1))
sales = np.array([[2, 3, 1],
                  [6, 3, 3],
                  [5, 3, 5]])
print("\nPie sales (#):")
print(sales)

Pie cost:
[[20]
 [15]
 [25]]

Pie sales (#):
[[2 3 1]
 [6 3 3]
 [5 3 5]]

How can we multiply these two arrays together?

Slowest method: nested loop¶

total = np.zeros((3, 3))
for i in range(3):
    for j in range(3):
        total[i,j] = cost[i] * sales[i,j]
total

array([[ 40.,  60.,  20.],
       [ 90.,  45.,  45.],
       [125.,  75., 125.]])

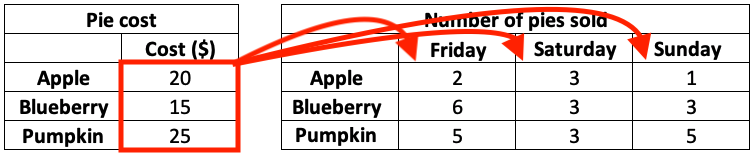

Faster method: vectorize the loop over rows¶

total = np.zeros((3, 3))
for j in range(3):
    total[:,j] = cost * sales[:,j]
total

array([[ 40.,  60.,  20.],
       [ 90.,  45.,  45.],
       [125.,  75., 125.]])

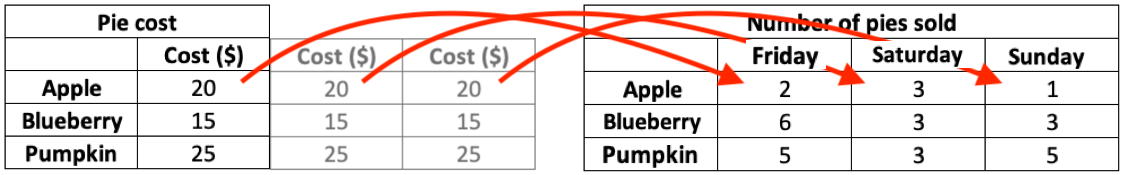

No-loop method: make them the same size, and multiply element-wise¶

cost_rep = np.repeat(cost[:,np.newaxis], 3, axis=1)
cost_rep

array([[20, 20, 20],
       [15, 15, 15],
       [25, 25, 25]])

cost_rep * sales

array([[ 40,  60,  20],
       [ 90,  45,  45],
       [125,  75, 125]])

What is np.newaxis?
It changes the shape:

cost.shape

(3,)

cost[:,np.newaxis].shape

(3, 1)

cost.reshape(3,1).shape # the name thing

(3, 1)

cost[np.newaxis].shape

(1, 3)

Fastest method: broadcasting¶

cost[:,np.newaxis] * sales

array([[ 40,  60,  20],
       [ 90,  45,  45],
       [125,  75, 125]])

numpy does the equivalent of np.repeat() for you - no need to do it explicitly
It is debatable whether this code is more readable, but it is definitely faster.

When can we use broadcasting?¶

Say we want to broadcast the following two arrays:

arr1 = np.arange(3)
arr2 = np.ones((5))

arr1

array([0, 1, 2])

arr2

array([1., 1., 1., 1., 1.])

arr1.shape

(3,)

arr2.shape

(5,)

The broadcast will fail because the arrays are not compatible...

arr1 + arr2

---------------------------------------------------------------------------
ValueError                                Traceback (most recent call last)
Cell In[33], line 1
----> 1 arr1 + arr2

ValueError: operands could not be broadcast together with shapes (3,) (5,)

We can facilitate this broadcast by adding a dimension using np.newaxis.
np.newaxis increases the dimension of an array by one dimension.

arr1.shape

arr1 = arr1[:, np.newaxis]

arr1.shape

arr2 = arr2[np.newaxis]

arr2.shape

arr1 + arr2

the opposite, reducing a dimension, can be achieved by np.squeeze()

arr1.shape

np.squeeze(arr1).shape

The rules of broadcasting:

NumPy compares arrays one dimension at a time. It starts with the trailing dimensions, and works its way to the first dimensions.
dimensions are compatible if:
- they are equal, or
- one of them is 1.
Use the code below to test out array compatibitlity

a = np.ones((5,1))
b = np.ones((1,3))
print(f"The shape of a is: {a.shape}")
print(f"The shape of b is: {b.shape}")
try:
    print(f"The shape of a + b is: {(a + b).shape}")
except:
    print(f"ERROR: arrays are NOT broadcast compatible!")

Introduction to pandas¶

The most popular Python library for tabular data structures

import pandas as pd

Pandas Series¶

A Series is like a NumPy array but with labels
1-dimensional
Can be created from a list, ndarray or dictionary using pd.Series()
Labels may be integers or strings

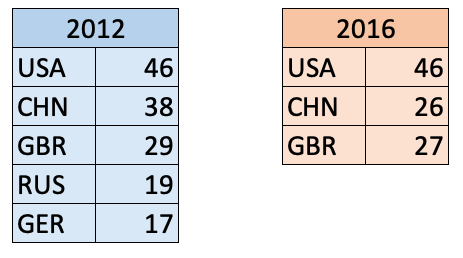

Here are two series of gold medal counts for the 2012 and 2016 Olympics:

pd.Series()

s1 = pd.Series(data = [46, 38, 29, 19, 17],
               index = ['USA','CHN','GBR','RUS','GER'])
s1

s2 = pd.Series([46, 26, 27],
               ['USA', 'CHN', 'GBR'])
s2

Like ndarrays we use square brackets [] to index a series
BUT, Series can be indexed by an integer location OR a label

s1

s1.iloc[0]

s1.iloc[1]

s1["USA"]

s1["USA":"RUS"]

Do we expect these two series to be compatible for broadcasting?

s1

s2

print(f"The shape of s1 is: {s1.shape}")
print(f"The shape of s2 is: {s2.shape}")

s1 + s2

Unlike ndarrays operations between Series (+, -, /, *) align values based on their LABELS
The result index will be the sorted union of the two indexes

Pandas DataFrames¶

The primary Pandas data structure

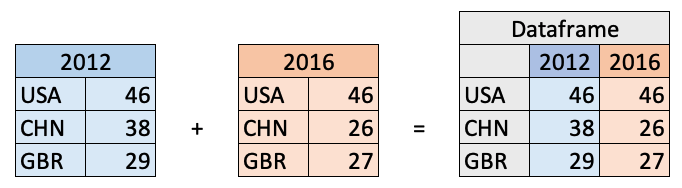

Really just a bunch of Series (with the same index labels) stuck together
Made using pd.DataFrame()

Creating a DataFrame with a numpy array

d = np.array([[46, 46],
              [38, 26],
              [29, 27]])
c = ['2012', '2016']
i = ['USA', 'CHN', 'GBR']
df = pd.DataFrame(data=d, index=i, columns=c)
df

(optional) Creating a DataFrame with a dictionary

d = {'2012': [46, 38, 29],
     '2016': [46, 26, 27]}
i = ['USA', 'CHN', 'GBR']
df = pd.DataFrame(d, i)
df

Indexing Dataframes¶

There are three main ways to index a DataFrame:
1. [] (slice for rows, label for columns)
2. .loc[]
3. .iloc[]

df

`[]` notation¶

you can index columns by single labels or lists of labels

df['2012']

type(df['2012'])

type(['2012', '2016'])

df[['2012', '2016']]

(optional) you can also index rows with [], but you can only index rows with slices

df["CHN":"GBR"]

# df["USA"] # doesn't work

df[:"USA"] # does work

this is a little unintuitive, so pandas created two other ways to index a dataframe:
for indexing with integers: df.iloc[]
for indexing with labels: df.loc[]

df

df.iloc[1]

df.iloc[2,1]

df.loc['CHN']

df.loc['GBR', '2016']

df.loc[['USA', 'GBR'], ['2012']]

df.index

df.columns

#df.loc[df.index[0], '2016']

#df.loc['USA', df.columns[0]]

Indexing cheatsheet¶

[] accepts slices for row indexing or labels (single or list) for column indexing
.iloc[] accepts integers for row/column indexing, and can be single values or lists
.loc[] accepts labels for row/column indexing, and can be single values or lists
for integer row/named column: df.loc[df.index[#], 'labels']
for named row/integer column: df.loc['labels', df.columns[#]]

Break (5 min)¶

Reading from .csv¶

Most of the time you will be loading .csv files for use in pandas using pd.read_csv()
Example dataset: a colleague’s cycling commute to/from UBC everyday

path = 'data/cycling_data.csv'

pd.read_csv(path, index_col=0, parse_dates=True).head()

Reading from url¶

you may also want to read directly from an url at times
pd.read_csv() accepts urls as input

url = 'https://raw.githubusercontent.com/TomasBeuzen/toy-datasets/master/wine_1.csv'
pd.read_csv(url)

Reading from other formats¶

pd.read_excel()
pd.read_html()
pd.read_json()
etc

Dataframe summaries¶

df = pd.read_csv('data/cycling_data.csv')
df.head()

df.info()

df.describe(include='all')

Renaming columns with `df.rename()`¶

df.head()

we can rename specific columns using df.rename()

{"Comments": "Notes"}

type({"Comments": "Notes"})

df = df.rename(columns={"Comments": "Notes"})
df.head()

there are two options for making permanent dataframe changes:
- 1. set the argument inplace=True, e.g., df.rename(..., inplace=True)
- 1. re-assign, e.g., df = df.rename(...)

df.rename(columns={"Comments": "Notes"}, inplace=True) # inplace
df = df.rename(columns={"Comments": "Notes"}) # re-assign

NOTE:¶

the pandas team discourages the use of inplace for a few reasons
mostly because not all functions have the argument, hides memory copying, leads to hard-to-find bugs
it is recommend to re-assign (method 2 above)

we can also change all columns at once using a list

df.columns = ['col1', 'col2', 'col3', 'col4', 'col5', 'col6']
df.head()

Adding/removing columns with `[]` and `drop()`¶

df = pd.read_csv('data/cycling_data.csv')
df.head()

adding a single column

df['Speed'] = 3.14159265358979323
df.head()

dropping a column

df = df.drop(columns="Speed")
df.head()

we can also add/drop multiple columns at a time

df = df.drop(columns=['Type', 'Time'])
df.head()

Adding/removing rows with `[]` and `drop()`¶

df = pd.read_csv('data/cycling_data.csv')
df.tail()

last_row = df.iloc[-1]
last_row

df.shape

(optional) We can add the row to the end of the dataframe using df.append()

df = df.append(last_row)
df.tail()

df.shape

but now we have the index label 32 occurring twice (that can be bad! Why?)

df.loc[32]

df = df.iloc[0:33]
df.tail()

we need can set ignore_index=True to avoid duplicate index labels

df = df.append(last_row, ignore_index=True)
df.tail()

df = df.drop(index=[33])
df.tail()

Sorting a dataframe with `df.sort_values()`¶

df = pd.read_csv('data/cycling_data.csv')
df.head()

df.sort_values(by='Time').head()

df.head()

use the ascending argument to specify sort order as ascending or descending

df.sort_values(by="Time", ascending=False).head()

(optional) we can sort by multiple columns in succession by passing in lists

df.sort_values(by=['Name', 'Time'], ascending=[True, False]).head()

we can sort a dataframe back to it’s orginal state (based on index) using df.sort_index()

df.sort_index().head()

Filtering a dataframe with `[]` and `df.query()`¶

we’ve already seen how to filter a dataframe using [], .loc and .iloc notation
but what if we want more control?
df.query() is a powerful tool for filtering data

df = pd.read_csv('data/cycling_data.csv')
df.head()

df.query() accepts a string expression to evaluate, using it’s own syntax

df.query('Time > 2500 and Distance < 13')

df[(df['Time'] > 2500) & (df['Distance'] < 13)]

we can refer to variables in the environment by prefixing them with an @

thresh = 2800
df.query('Time > @thresh')

Applying functions to a dataframe with `df.apply()` and `df.applymap()`¶

many common functions are built into Pandas as dataframe methods
e.g., df.mean(), df.round(), df.min(), df.max(), df.sum(), etc.

df = pd.read_csv('data/cycling_data.csv')
df.head()

df.mean()

df.min()

df.max()

df.sum()

however there will be times when you want to apply a non-built in function
df.apply() applies a function column-wise or row-wise
the function must be able to operate over an entire row or column at a time

df[['Time', 'Distance']].head()

np.sin(2)

np.sin(0)

you may use functions from other packages, such as numpy

df[['Time', 'Distance']].apply(np.sin).head()

or make your own custom function

df[['Time']].apply(lambda x: x/60).head()

use df.applymap() for functions that accept and return a scalar

df.info()

float(3)

float([1, 2]) # this function only accepts a single value, so this will fail

df[['Time']].apply(float).head() # fails

df_float_1 = df[['Time']].applymap(float).head() # works with applymap
df_float_1

however, if you’re applying an in-built function, there’s often another (vectorized) way...
from Pandas docs “Note that a vectorized version of func often exists, which will be much faster.”

df_float_2 = df[['Time']].astype(float).head() # alternatively, use astype
df_float_2

# using vectorized .astype
%timeit df[['Time']].astype(float)

# using element-wise .applymap
%timeit df[['Time']].applymap(float)

About this document¶

Plotting with matplotlib¶

Numpy arrays¶

Numpy array shapes¶

Broadcasting in numpy¶

Slowest method: nested loop¶

Faster method: vectorize the loop over rows¶

No-loop method: make them the same size, and multiply element-wise¶

Fastest method: broadcasting¶

When can we use broadcasting?¶

Introduction to pandas¶

Pandas Series¶

Pandas DataFrames¶

Indexing Dataframes¶

[] notation¶

Indexing cheatsheet¶

Break (5 min)¶

Reading from .csv¶

Reading from url¶

Reading from other formats¶

Dataframe summaries¶

Renaming columns with df.rename()¶

NOTE:¶

Adding/removing columns with [] and drop()¶

Adding/removing rows with [] and drop()¶

Sorting a dataframe with df.sort_values()¶

Filtering a dataframe with [] and df.query()¶

Applying functions to a dataframe with df.apply() and df.applymap()¶

`[]` notation¶

Renaming columns with `df.rename()`¶

Adding/removing columns with `[]` and `drop()`¶

Adding/removing rows with `[]` and `drop()`¶

Sorting a dataframe with `df.sort_values()`¶

Filtering a dataframe with `[]` and `df.query()`¶

Applying functions to a dataframe with `df.apply()` and `df.applymap()`¶
