Single Source Shortest Path

Week 14, Wednesday — Dijkstra’s

April 10, 2026

Announcements

Single Source Shortest Path

Given a start vertex (source) \(s\), find the path of least total cost from \(s\) to every vertex in the graph.

Single Source Shortest Path

• Input: directed graph \(G\) with non-negative edge weights, and a start vertex \(s\).
• Output: A subgraph \(G’\) consisting of the shortest (minimum total cost) paths from \(s\) to every other vertex in the graph.

Dijkstra’s Algorithm (1959)

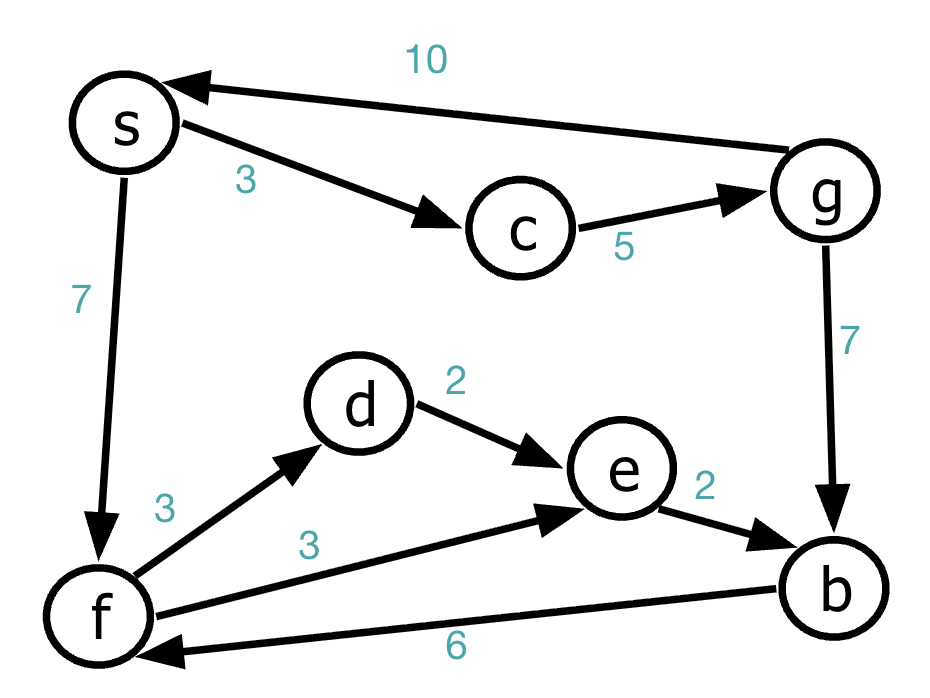

Note:

1. change (d,e) to -2: DIJK may not find shortest path
2. change (g,s) to -10: no shortest path exists

SSSP Algorithm

Given a source vertex \(s\), we wish to find the shortest path from \(s\) to every other vertex in the graph.

1. Initialize structure:

   • d:
   • p:

2. Repeat these steps:

   • Label a new (unlabelled) vertex \(v\), whose shortest distance has been found
   • Update \(v\)’s neighbors with improved distance and predecessor

SSSP Algorithm

1. Initialize structure:

   • For all v: d[v] = INF, p[v] = null
   • Let d[s] = 0
   • Initialize PQ by d[v]

2. Repeat n times:

   • Remove minimum d[] unlabelled vertex: v
   • Label vertex v
   • For all unlabelled neighbors w of v:
     • If (________________ < d[w])
       • d[w] = ________________
       • p[w] = v

3. Return p

Three Observations:

• When a node becomes labeled, its shortest distance is final. It will never improve again.

• d[] values only decrease, never increase.

• The predecessors p[] form a shortest-path tree.

Your Turn

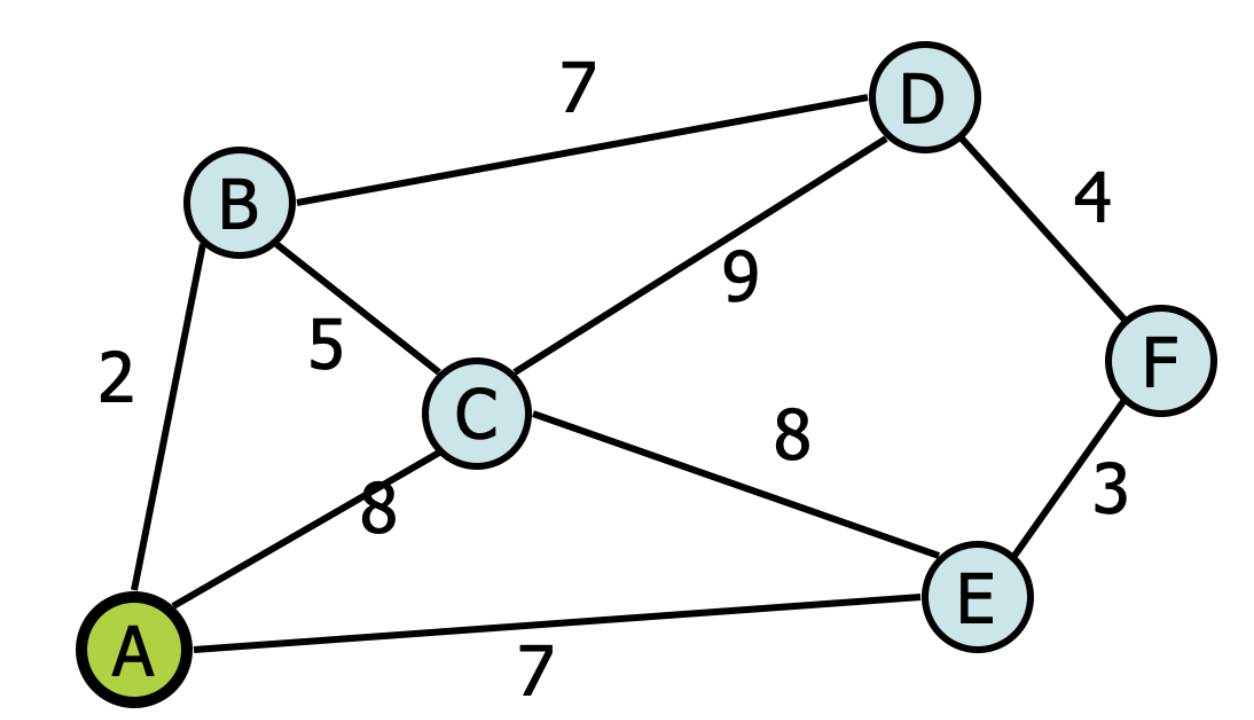

Execute Dijkstra’s algorithm on this graph:

Prim’s Algorithm: Runtime Analysis

1. Initialize structure:

   • For all v: d[v] = INF, p[v] = null
   • Let d[s] = 0
   • Initialize PQ by d[v] ⭐

2. Repeat n times:

   • Remove minimum d[] unlabelled vertex: v ⭐
   • Label vertex v
   • For all unlabelled neighbors w of v: 💜
     • If (wt[(v,w)] < d[w])
       • d[w] = wt[(v,w)] ⭐
       • p[w] = v

3. Return p

⭐ \(n\) removeMins + \(\leq m\) decreaseKeys
💜 \(O(m)\) total (adj list)  |  \(O(n^2)\) total (adj matrix)

	Adj matrix	Adj list
heap	\(O(n^2 + m \log n)\)	\(O(m \log n)\)
unsorted array	\(O(n^2)\)	\(O(n^2)\)



Which is best? Depends on graph density:

• Sparse (\(m=O(n)\)):
• Dense (\(m=O(n^2)\)):

Heap + adj list: n×O(log n) removeMin + m×O(log n) decreaseKey + O(m) neighbor scans = O(m log n). Heap + adj matrix: same PQ cost + O(n) per vertex for neighbor scan = O(n²) + O(m log n). Unsorted array + adj matrix: O(n) removeMin × n = O(n²); decreaseKey O(1); neighbor scan O(n²) total = O(n²). Unsorted array + adj list: O(n²) removeMin dominates = O(n²).

The End.

Thanks for a fun year!
